This is the start of my cnc plasma table. Grinding the running bars so they fit
my v-bearings. The bars are 1/4" by 3" cold rolled 5' long.

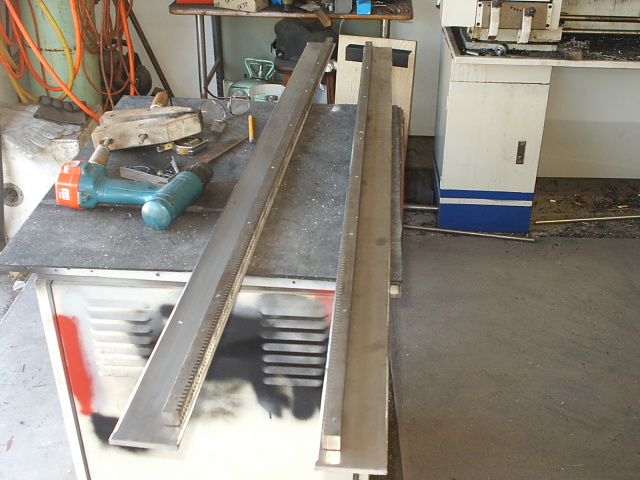

Attaching the gear racks for the Y axis.

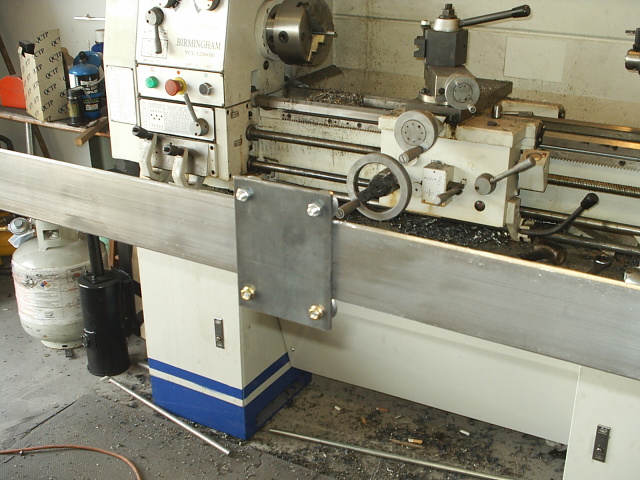

This is one of the roller plates for the Y axis

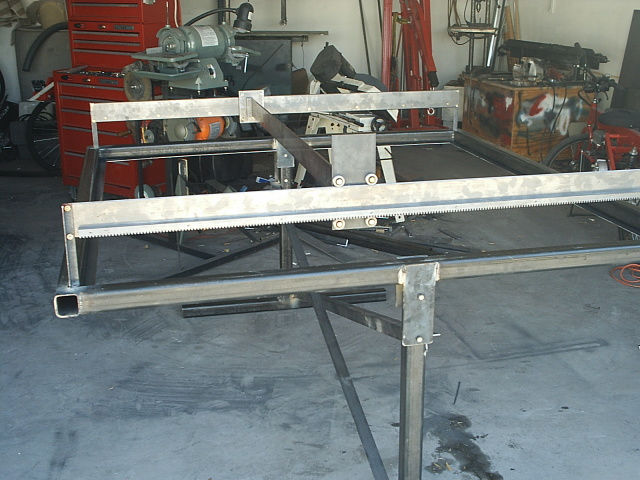

This is my table with the Y axis

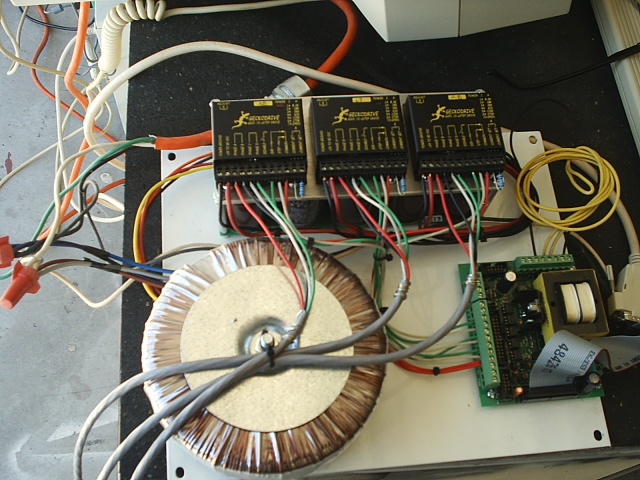

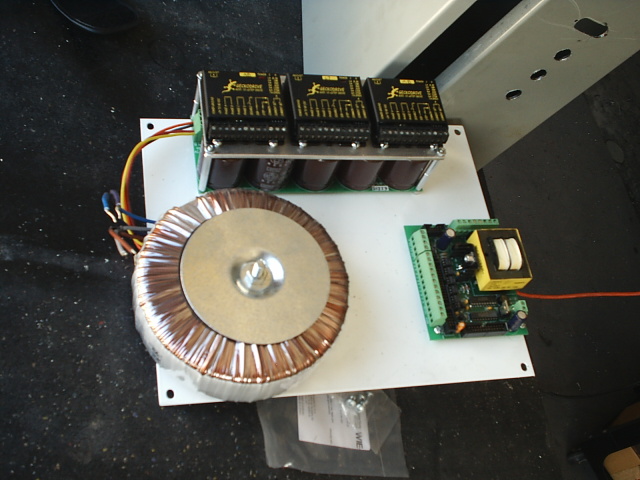

Transformer power-supply gecko-drivers breakout-board

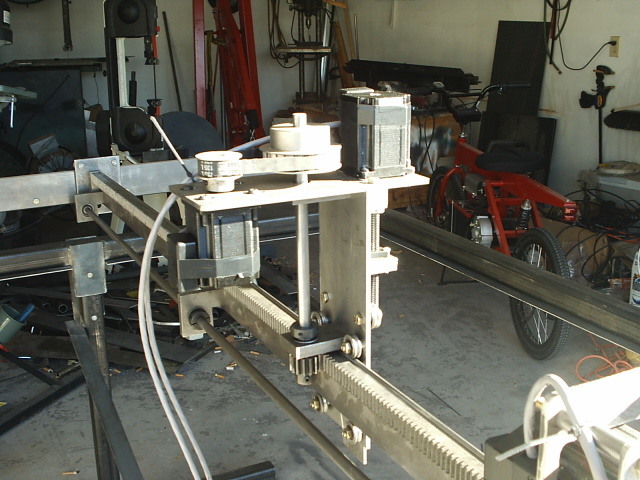

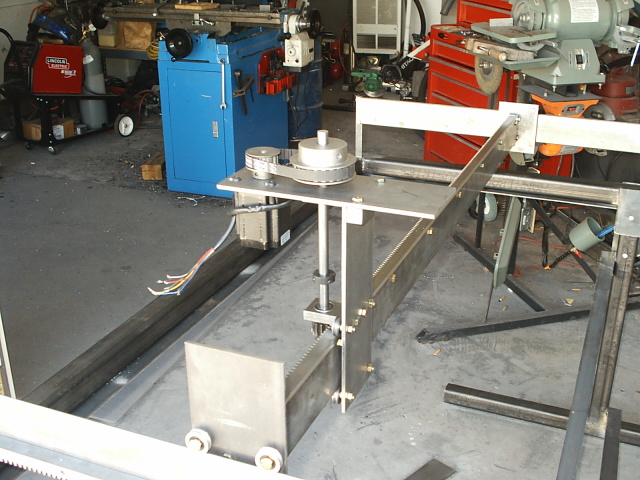

The x axis

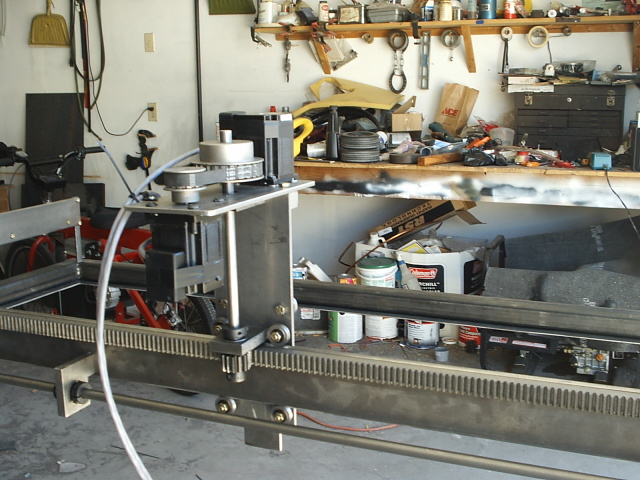

The x axis

The x axis

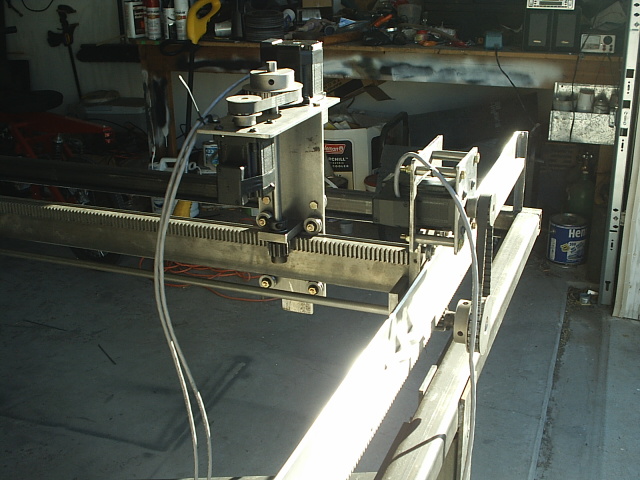

The x and y axis

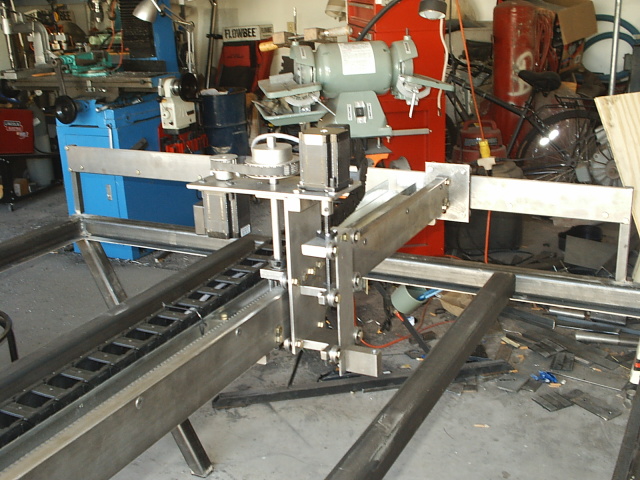

The x and z axis

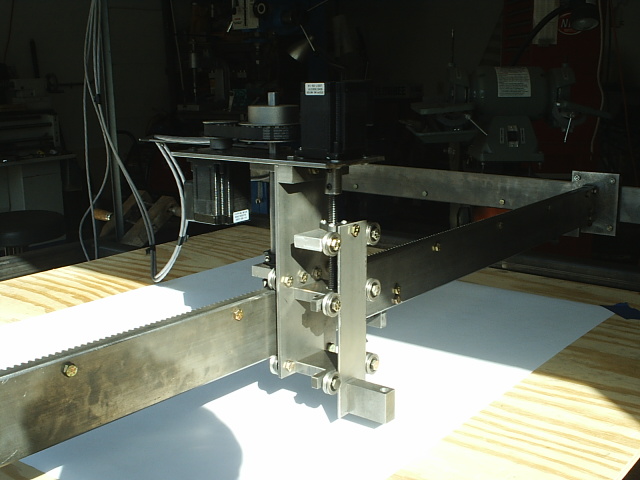

The z axis with floating head

The y axis

The controls wired and running with Mach3

Changes to the table

Cable Track

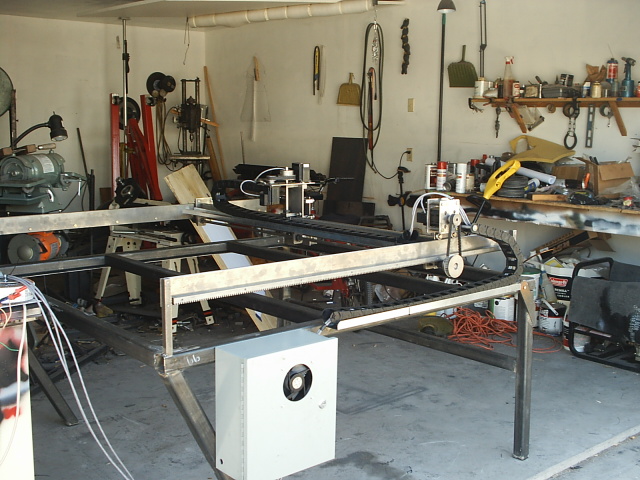

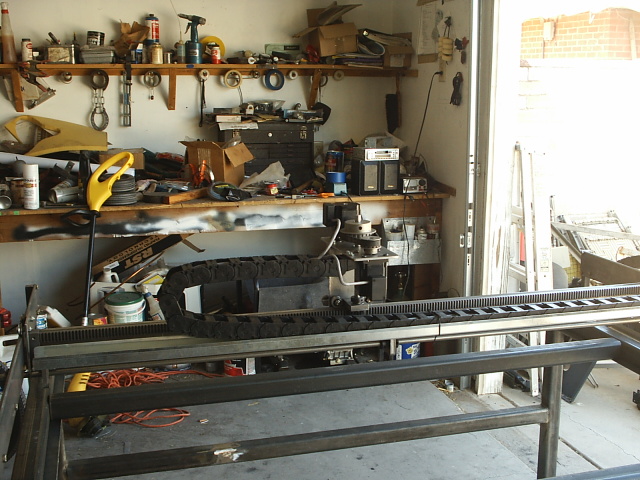

Added cable track

--------------------------------

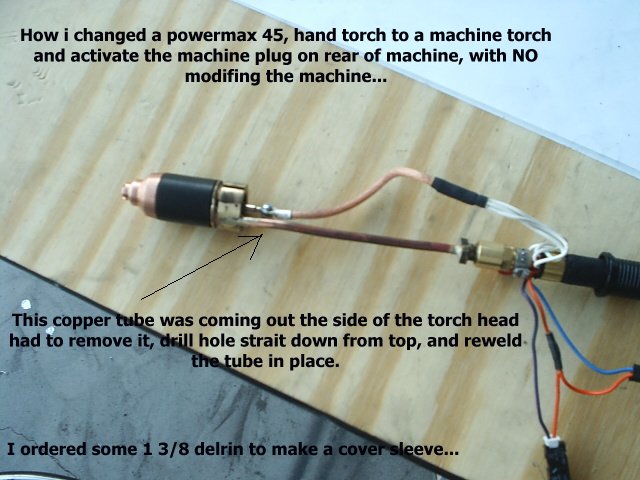

Hand-Torch to Machine-Torch

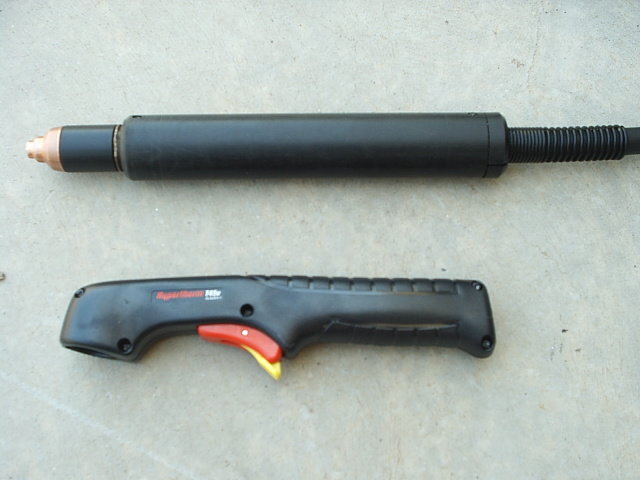

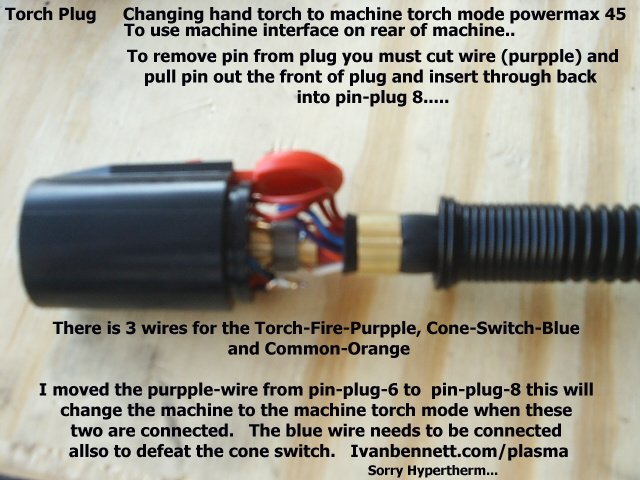

Powermax 45 Hand-Torch to Machine-Torch

The Before and After Hand-Torch to Machine-Torch
